Description

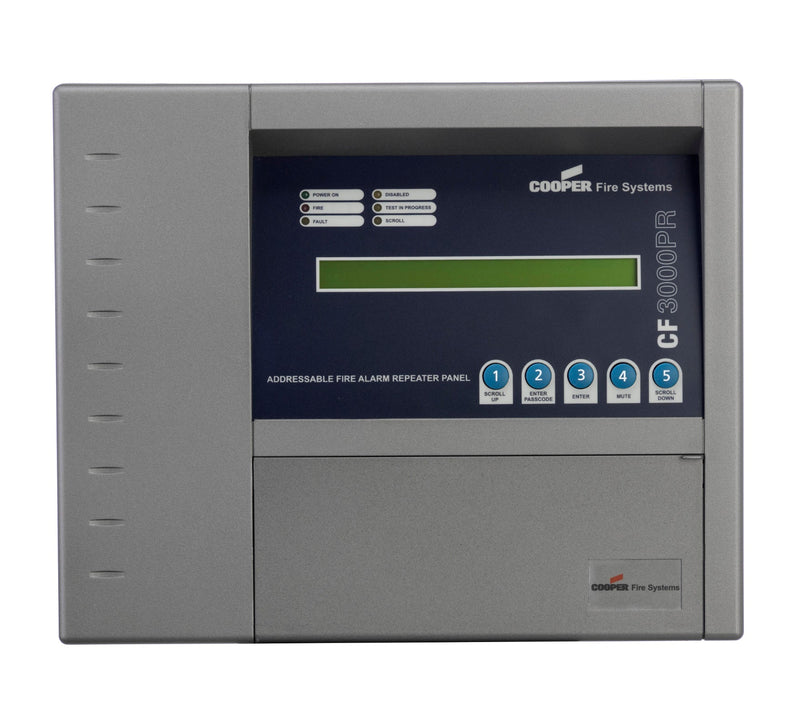

The CF3000PRG is a cost effective passive repeater panel which can be programmed via its informative display to be either fully passive (display only) or semi passive (restricted system control).
When loop connected the repeater panel will display the system information text of the connected control panel and will provide a fire indication, with panel number, of any connected network control panel that has fire activation.
The CF3000PRG repeater panel only requires programming with local text information.
In addition to the repeater panels main menu driven 2 x 40 backlit LCD display, which provides system status information, it also has 6 supervisory LED’s (power on, alarm, fault, supervisory, test in progress, and scroll).
Features
- 2 x 40 Backlit LCD display
- 6 Supervisory LED’s
- Loop and network connected versions available
- Maximum of 20 repeaters can be connected to a loop
- Integral battery and power supply
- Can be surface or semi recessed mounted
- Limited system control in supervisor mode:
- - Silence
- - Evacuate
- - Reset
Benefits
- Compact economy panel
- Menu driven LCD display
- Requires no programming (network version only)
- Reduced wiring and installation costs
- Numeric access code (no lost keys)
