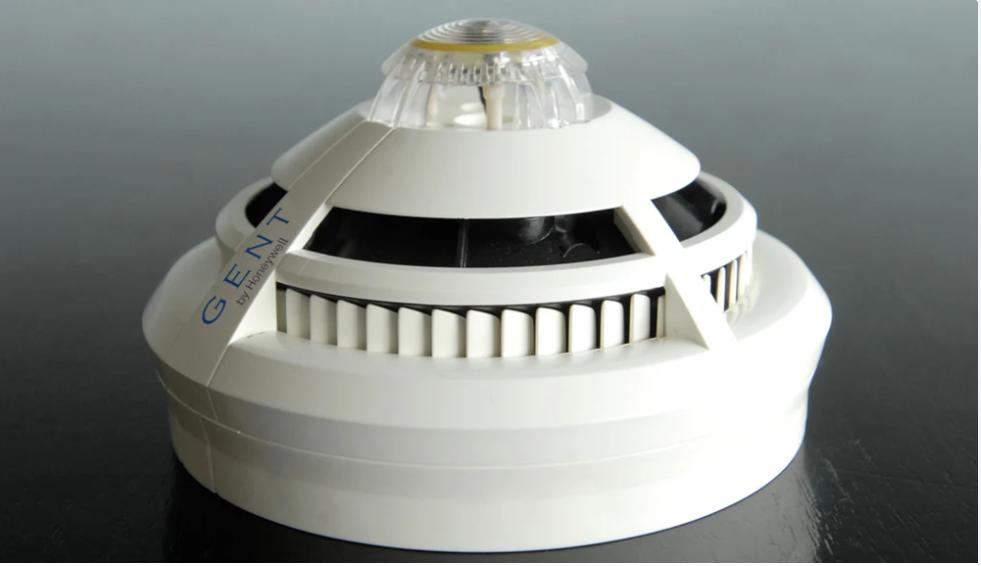

Gent by Honeywell S-Quad Detectors

Here at fire trade supplies we supply a wide range of Gent By Honeywell S-Quad Detectors

The Gent by Honeywell S-Quad range of fire alarm detectors and combined detectors and sounders has been around for some years now but the range remains hard to beat.

Gent by Honeywell have created a range which offers truly intelligent analogue sensors combining local processing in the detector and the Gent Vigilon fire alarm panel to minimise the risk of false alarms whilst achieving an immediate response to real fires. Guaranteeing the end user with highly engineered fire safety. The Gent by Honeywell S-Quad provides a comprehensive range combining sensor, sounder and voice in one multifunctional device.

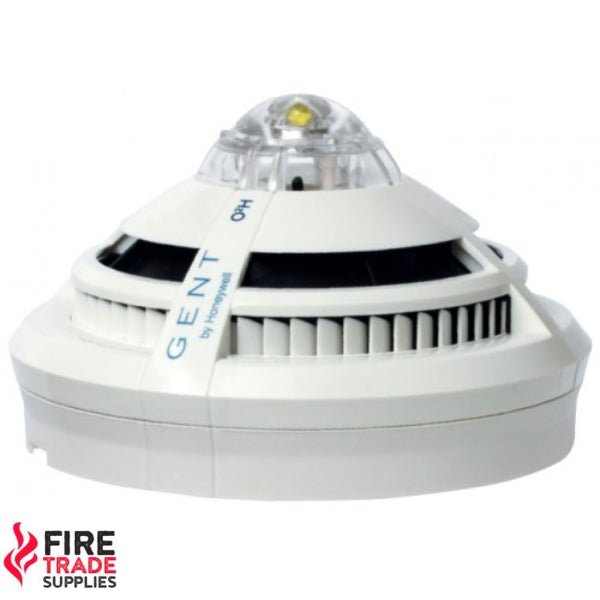

The S-Quad is a complete range of sensors with combinations of advanced sensing technologies including heat, dual angle optical scatter and carbon monoxide (CO).

Options include combined sensing of carbon monoxide with dual angle optical scatter and heat allowing a higher level of false alarm immunity in presence of steam and while still maintaining the integrity of detecting fires.

Each Gent S-Quad sensor has certified sensitivity settings that suit certain environments and applications which may be programmed for different times of the day if required using the functionality of the Gent Vigilon fire alarm panel.

Like all Honeywell Gent addressable fire alarm devices, the Gent S-Quad range has a short circuit isolator in each device, a feature which has for a long time been a significant benefit of using Gent Fire Alarms.

The Gent S-Quad detectors have configurable input/output connections for remote indicator or supervisory input fully synchronised sound patterns via the control panel.

The Gent by Honeywell S-Quad sensor sounders have adjustable sound level and tones to match system sounders. Sounder element monitoring and over-load protection ensures operation

even in event of cable fault. Sound output is synchronised and compatible with the Gent S‑Quad range of EN54‑23 VADs.

Key Features

Gent by honeywell S-Quad Sensor and alarm in one device reduces installation time and cost. Built-in high intensity VAD helps alert occupants in noisy environments as well as the hard of hearing

• Meets all the requirements of the Equality Act 2010
• Compatible with the Gent S­-Cubed wall mounted VAD
• State of the art, high efficiency visual alarm technology
• Advanced power management that increases loop capacity and integrity
• Range of devices and power settings to suit widest range of building applications
• Light output that allows devices to be sited at standard smoke and heat detector spacings
• Synchronised flash rate across the whole control panel avoiding risk of induced seizures
• VAD can operate independently of the sounder if required
• Meets the requirements of BS5839 part 1 relating to sensitivity to epilepsy

Honeywell Gent S-Quad Sensor and Sensor Sounder Data Sheet

Honeywell Gent S-Quad Multi-Sensor with Integrated Sounder and Visual Alarms Device (VAD) Data Sheet

Get in touch with our expert sales team for any queries or questions regarding the Gent by Honeywell fire detection range - sales@firetradesupplies.com

Part codes table:
