Description
Gent S4-715
| Gent S4 715 Data Sheet |
 |
Technical Specifications:
To help with planning and installation, here are the key specifications of the S4-715 Optical Sensor:
| Specification | Details |
|---|---|
| Operating Voltage | 35V - 41V |
| Operating Temperature | -10°C to +50°C |
| Diameter | 117mm |
| Height | 49.6mm (63.8mm with base) |
| Weight | 110g (170g with base) |
| IP Rating | IP30 |
These specs make the S4-715 ideal for deployment in diverse indoor environments where accurate smoke detection is essential.
Product Overview

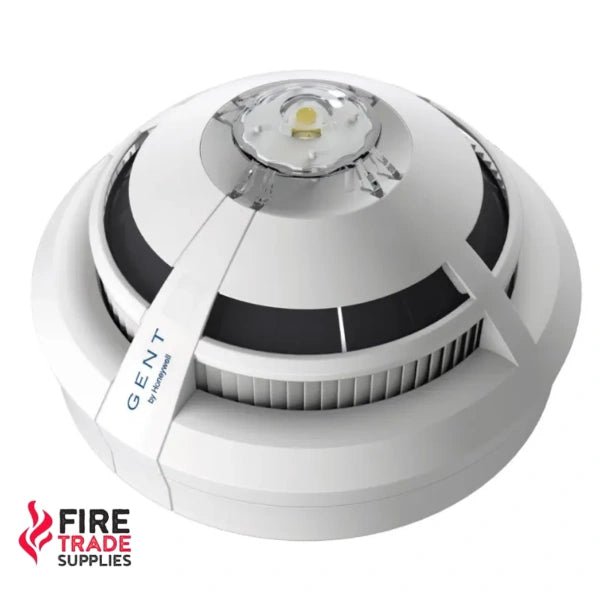

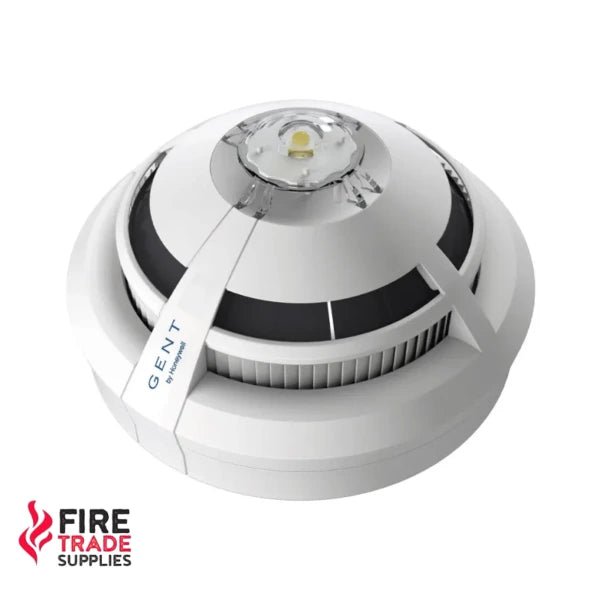

The Gent S4-715 is an intelligent analogue addressable optical smoke detector from the renowned S-Quad range by Honeywell Gent.
What sets this device apart is its ability to detect smoke particles with incredible accuracy while minimising false alarms — a common issue with traditional smoke detectors.
Engineered for use in both new installations and system upgrades, this detector integrates seamlessly with Gent fire alarm panels and is suitable for a wide range of environments, including industrial, commercial, and institutional settings.
Key Features of the Gent S4-715:
When you're investing in life safety systems, features matter. Here’s why the Gent S4 715 remains a trusted choice for fire professionals across the UK:
-
Advanced Optical Sensing Technology
Utilises dual-angle optical scatter technology to enhance smoke detection sensitivity and reduce nuisance alarms. -
Integrated Short Circuit Isolator
Built-in isolator functionality boosts system resilience by localising faults and maintaining loop integrity. -
Programmable Sensitivity Settings
Offers tailored detection profiles to suit a range of applications, from low-risk office spaces to high-risk industrial areas. -
Configurable Input/Output Connection
Supports remote indicators and supervisory inputs for flexible and intelligent system design. -
Compatibility with Gent Vigilon Panels
Ensures full integration with control panels such as the Compact Plus Vigilon 1 Loop Panel, streamlining system maintenance and configuration.
Applications:
The Gent S4 715 is built for a wide variety of commercial and industrial applications, including:
-
Offices and commercial buildings
-
Educational institutions and universities
-
Hospitals and healthcare settings
-
Warehouses and production facilities
-
Mixed-use developments
“Wherever safety is a priority, the S4-715 delivers accuracy, reliability, and ease of integration.”
For broader system compatibility, explore our range of Honeywell Gent products available online.
Installation and Maintenance:

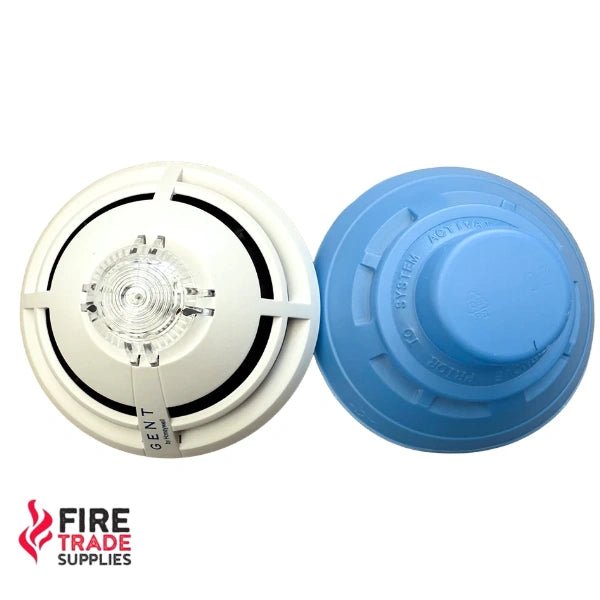

Installation is straightforward using the S4-700 common base, designed to support all detectors in the S-Quad series.
This saves valuable time during upgrades or replacements and ensures cross-compatibility across your fire alarm system.
Once installed, the S4-715 requires minimal upkeep, thanks to its robust design and intelligent fault diagnostics.
This low-maintenance advantage makes it particularly attractive for building managers responsible for large-scale installations.
Compliance and Certifications:
Meeting stringent industry regulations, the Gent S4 715 is LPCB approved and manufactured in accordance with international standards.
It’s fully compliant with EN54 directives, making it suitable for professional fire alarm installations across the UK and Europe.
