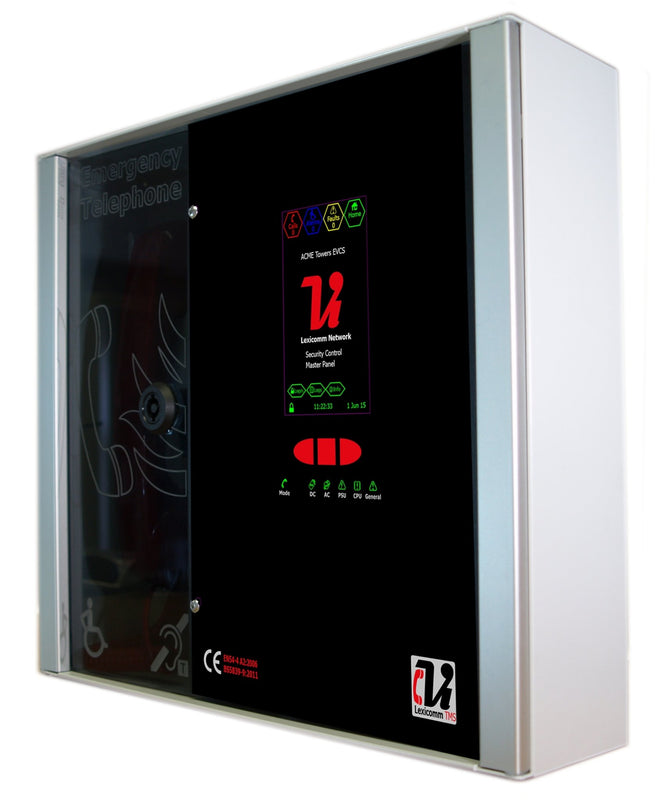

ViLX-TMS-W-8 Lexicomm Touchscreen Master Station

Vox IgnisSKU: VILX-TMS-W-8

Price:
Sale price£1,173.00 GBP

Description

ViLX-TMS-W-8 Lexicomm Touchscreen Master Station

The Lexicomm ViLX-TMS Master station can accept up to eight lines of outstation, (Type A fixed phones, Type B refuge hands free points, emergency assist alarm point or jack points in Far East and Middle East applications) as required.

The touch-screen layout has four buttons allowing quick access to the main functions, and permanently displaying the number of current calls, alarms and faults.

Emergency Assist Alarm calls can be acknowledged by pressing the Icon on screen(as required by BS8300) and will return to alarm if not reset within two minutes.

The ViLX-TMS has inbuilt networking allowing it to form one of the 64 panels on a Lexicomm network installation allowing a total of 512 outstations to be accommodated. Each panel can be a master station or ViLX-EX8 network expander.

Lexicomm Touchscreen Master Station, supplied in a wall mount enclosure with space for battery (not supplied requires 1x 12V 7A/H VRSLA), 4.3” high contrast full colour touchscreen display, built in Network, 512 line capacity (forming part of a 64 panel network), complete with 8 integral lines for connection of outstations or Assist Call systems. Compliant to BS5839pt9 2011.

DATASHEET

Click here for the datasheet for the ViLX-TMS-W-8
