Description

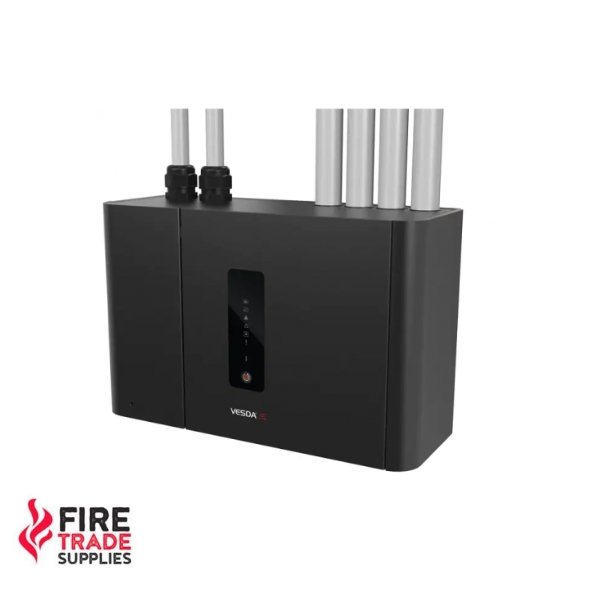

VESDA VEP-A00-P 4 Pipe Aspirating Smoke Detector (LED Display – Black)
The VESDA VEP-A00-P is a 4 pipe LaserPLUS aspirating smoke detector designed to deliver very early warning fire detection in high-risk and mission-critical environments. As part of the Honeywell / Xtralis VESDA-E VEP series, the VEP-A00-P uses advanced laser-based air sampling technology to detect smoke particles at extremely low concentrations while minimising nuisance alarms.
The VESDA VEP-A00-P Features a black plastic enclosure with FOK LED display, this VESDA VEP 4 pipe detector is ideal for large or complex spaces requiring extended pipe coverage and flexible system design.
This genuine Honeywell VESDA VEP-A00-P unit is supplied new and fully supported for professional fire alarm installations.
Key Features
-
4 pipe aspirating smoke detection capability
-
LaserPLUS detection technology with Flair™ performance
-
FOK LED status indicators
-
Multi-stage filtration and optical chamber protection
-
Four programmable alarm levels (Alert, Action, Fire 1, Fire 2)
-
Flow fault monitoring per pipe
-
AutoLearn™ commissioning support
-
Ethernet and USB connectivity
-
Optional WiFi secondary monitoring
-
Backward compatible with VLP and VESDAnet systems
-
Seven programmable relays
The multi-stage filtration system protects the detection chamber from contamination, maintaining consistent sensitivity over time.
Applications
The VESDA VEP-A00-P 4 pipe detector is commonly specified in:
-
Data centres and server rooms
-
Telecoms facilities
-
Industrial manufacturing environments
-
Clean rooms and laboratories
-
High-ceiling warehouses
-
Critical infrastructure projects
Its multi-pipe design allows wider coverage and optimised airflow management compared to single pipe aspirating detectors.
Technical Specifications
Model: VEP-A00-P
Pipe Capacity: 4 Pipe
Enclosure: Black Plastic
Display: FOK LED indicators
Supply Voltage: 18–30 VDC (24 V nominal)
Dimensions: 350 × 225 × 135 mm
Weight: 4.0 kg
IP Rating: IP40
Area Coverage: Up to 2,000 m²
Maximum Linear Pipe Length: 280 m
Maximum Branched Pipe Length: 560 m
Minimum Airflow per Pipe: 15 l/m
Relays: 7 programmable relays
Approvals: EN 54-20, UL, ULC, FM, VdS, CE
EN 54-20 Classification (4 Pipe):
-
Class A – 40 holes
-
Class B – 80 holes
-
Class C – 100 holes
Pipe network design should be completed using approved tools such as ASPIRE to ensure compliance and optimal performance.
The VEP-A00-P is certified to EN 54-20 Class A, B and C (subject to pipe design), making it suitable for high-sensitivity aspirating smoke detection applications.
Integration & Connectivity
The VESDA VEP-A00-P integrates with fire alarm control panels and supports remote monitoring and maintenance via Ethernet, USB and optional WiFi. The detector also features programmable GPIs and field-replaceable sub-assemblies to support faster servicing and reduced downtime.
VEP-A00-P vs Other VEP Models
-
VEP-A00-1P – Single pipe version
-
VEP-A10-P – 4 pipe version with 3.5” display
The VEP-A00-P provides four pipe coverage with LED indication, offering increased detection flexibility without the full LCD interface.
Why Choose the VESDA VEP-A00-P?
The VEP-A00-P 4 pipe aspirating smoke detector is ideal where:
-
Very early smoke detection is required
-
Large areas demand multi-pipe coverage
-
High airflow reduces point detector effectiveness
-
Long-term sensitivity stability is critical
For high-value or high-risk environments requiring dependable very early smoke detection, the VESDA VEP-A00-P provides proven aspirating performance with advanced nuisance alarm rejection.
