Description

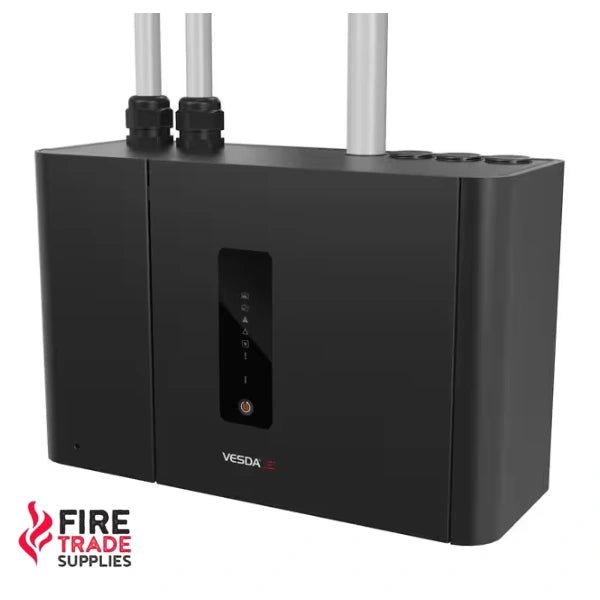

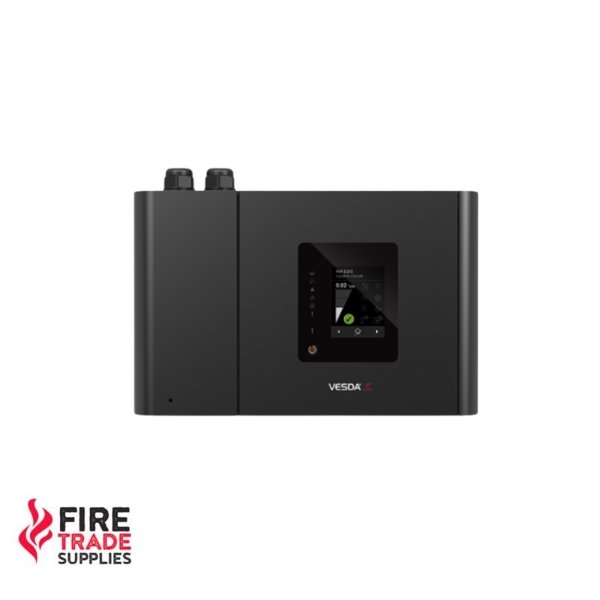

VESDA VEP-A00-1P Aspirating Smoke Detector (Single Pipe – LED Display)
The VESDA VEP-A00-1P aspirating smoke detector is a single-pipe LaserPLUS air sampling detector designed to deliver very early warning fire detection in high-risk and mission-critical environments. Part of the Honeywell / Xtralis VESDA-E VEP series, the VEP-A00-1P uses advanced Flair™ detection technology to identify smoke particles at extremely low concentrations while maintaining strong nuisance alarm rejection performance.
The VESDA VEP A00 1P continuously draws air through a sampling pipe network and analyses it inside a high-sensitivity laser detection chamber. Unlike conventional point smoke detectors that rely on smoke rising to a ceiling-mounted device, the aspirating system actively samples air from the protected environment, enabling smoke to be detected at a much earlier stage of fire development.
With its single pipe configuration and front-panel LED status indicators, the VEP-A00-1P is designed for installations where compact aspirating smoke detection coverage is required without the complexity of multi-pipe aspirating systems. This makes it well suited for protecting equipment rooms, telecom infrastructure and other critical environments where early detection is essential.
The detector is commonly searched as VEP A00 1P, VEP-A00-1P, or VESDA VEP A00 1P, all referring to the same VESDA-E VEP aspirating smoke detector designed for reliable early fire detection.
What Is the VESDA VEP-A00-1P?
The VESDA VEP-A00-1P is a single pipe aspirating smoke detector within the VESDA-E VEP range, designed to provide very early warning fire detection in environments where highly reliable smoke detection is required.
The detector operates by continuously drawing air through a network of sampling pipes and analysing it inside a LaserPLUS detection chamber. This laser-based technology is capable of identifying extremely small concentrations of smoke particles, allowing developing fire conditions to be detected at a very early stage.
Unlike conventional point smoke detectors that rely on smoke rising naturally to a ceiling-mounted device, the VESDA VEP-A00-1P aspirating detector actively samples air from the protected environment. This active air sampling approach allows smoke to be detected earlier in environments with high airflow, large spaces or complex layouts.
The detector features front-mounted FOK LED indicators that display system status, alarm levels and fault conditions, helping engineers and maintenance teams quickly assess system performance during operation and servicing.
Key Features
| Feature | Description |
|---|---|
| Single pipe aspirating detection | Designed for installations requiring a single sampling pipe network. |
| LaserPLUS detection technology | High-sensitivity laser detection capable of identifying extremely small smoke particles. |
| Very early warning smoke detection | Detects smoke at very low concentrations before visible smoke develops. |
| FOK LED status indicators | Front-panel LEDs display system status, alarms and faults. |
| Multi-stage filtration | Protects the detection chamber from dust contamination. |
| Four programmable alarm levels | Alert, Action, Fire 1 and Fire 2 alarm thresholds. |
| Flow fault monitoring | Monitors airflow through the sampling pipe to detect blockages or leaks. |
| AutoLearn™ commissioning | Automatically establishes alarm thresholds during setup. |
| Event logging capability | Stores system events for diagnostics and maintenance analysis. |
| Backward compatibility | Compatible with VLP and VESDAnet systems. |
These features allow the VESDA VEP-A00-1P aspirating smoke detector to maintain stable detection sensitivity while reducing nuisance alarms in challenging environments.
Applications
The VESDA VEP-A00-1P is commonly specified in environments where very early smoke detection is required to protect critical equipment and infrastructure.
Typical applications include:
-
Data centres and server rooms
-
Telecommunications facilities
-
Electrical switch rooms
-
Industrial production environments
-
Control rooms and monitoring centres
-
Clean rooms and laboratories
-
Warehouses and logistics facilities
-
Infrastructure and transport systems
Because the detector uses aspirating smoke detection technology, it is particularly effective in environments where airflow, temperature variations or ceiling height may delay the activation of traditional smoke detectors.
Technical Specifications
| Specification | Details |
|---|---|
| Model | VEP-A00-1P |
| Detector Type | LaserPLUS Aspirating Smoke Detector |
| Pipe Capacity | Single pipe |
| Display | FOK LED status indicators |
| Power Supply | 18–30 VDC (24 V nominal) |
| Dimensions | 350 × 225 × 135 mm |
| Weight | 4.0 kg |
| IP Rating | IP40 |
| Maximum Area Coverage | Up to 1000 m² |
| Approvals | EN 54-20, UL, ULC, FM, VdS, CE |
VESDA VEP-A00-1P Manual & Documentation
Documentation including the VESDA VEP-A00-1P manual, installation guide and product documentation is available from the manufacturer or within the document section of this page.
These resources provide detailed guidance on installation, pipe network design and commissioning of VESDA aspirating smoke detection systems.
Engineers commonly reference the VESDA VEP-A00-1P installation manual when designing pipe layouts and verifying airflow performance and transport times for the protected environment.
VEP-A00-1P vs Other VEP Models
The VESDA-E VEP series includes several aspirating smoke detectors designed for different coverage and configuration requirements.
| Model | Pipe Configuration | Interface |
|---|---|---|
| VEP-A00-1P | Single pipe | LED indicators |
| VEP-A00-P | Four pipe | LED indicators |
| VEP-A10-P | Four pipe | LCD display |
The VESDA VEP-A00-1P is typically selected when a single pipe aspirating smoke detection system provides sufficient coverage for the protected space while maintaining simpler installation and system design.
For larger installations requiring additional sampling pipe capacity, the VEP-A00-P or VEP-A10-P models may be specified.
Why Choose the VESDA VEP-A00-1P?
The VESDA VEP-A00-1P aspirating smoke detector is ideal for installations where:
-
Very early smoke detection is required
-
Compact aspirating smoke detection systems are preferred
-
High sensitivity smoke detection is needed
-
High airflow environments reduce the effectiveness of point detectors
-
Reliable detection performance is critical for equipment protection
For professional fire alarm installations, the Xtralis VESDA VEP-A00-1P delivers dependable aspirating smoke detection with consistent sensitivity and simplified system design.
