The Pinnacle of Fire Safety - NFXI-OPT
At Fire Trade Supplies, we offer a multitude of high-quality fire safety solutions. Today, we delve into the magic of the NFXI-OPT, an extraordinary piece of technology from our expansive Notifier collection.
The Intricate Makeup of NFXI-OPT

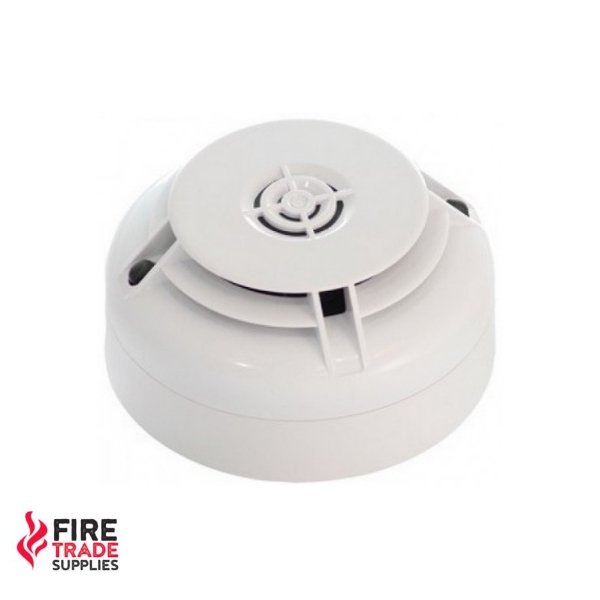

The NFXI-OPT, often referred to as an 'opal detector,' stands out as an analog smoke detector engineered with finesse and precision. It embraces a hi-opt 2 system, exhibiting a magnificent blend of design, functionality, and safety. The NFXI-OPT embodies a bold aesthetic with a sleek, detector white casing, making it both a visually pleasing and functional asset to any building.
Unleashing the Potency of the NFXI-OPT
A notable mention in the realm of Notifier smoke detectors, the NFXI-OPT extends beyond the norm. It not only detects smoke but also tracks the changes in the environment that may indicate a potential fire hazard. This analog detector's primary features include:
- Sensitivity Adjustment: Adjusts based on the environment and minimizes false alarms.
- Intelligent Data Analysis: Constantly processes data to discern between fire-like phenomena and actual fires.
- Durable Design: The robust construction ensures longevity and reliability.
"It's not just a smoke detector notifier, it's a promise of safety and tranquility."
Associated Notifier Marvels
In our extensive range of Notifier detectors, several products synchronize well with the NFXI-OPT. The B501AP Notifier Analogue Addressable Detector Base, for instance, offers an ideal platform for our analogue addressable smoke detectors.
Then we have our formidable Notifier Fixed Temp Heat Detectors - NFXI-TFIX78 and NFXI-TFIX58. Both excel in their temperature monitoring and detection prowess, making them fantastic companions to the NFXI-OPT.
Delving into the Technical Specifications
The NFXI-OPT doesn't just stand tall on the optical smoke detector price parameter but also impresses with its technical competencies. It integrates smoothly with our hi-opt 2 system, and features intelligent sensitivity adjustments. This analogue addressable smoke detector does an excellent job of detecting smoky, slow-burning fires while reducing false alarms. It represents a harmony between cost-effectiveness, performance, and reliability.
At Fire Trade Supplies, we strive to provide you with the best of the best. Our extensive collection of fire safety products, like the NFXI-OPT, are meticulously chosen to ensure maximum safety and peace of mind.
| Specification | |
|---|---|
| Mechanical Specification | |
| Height | 52mm installed in B501AP base |
| Diameter | 102mm installed in B501AP base |
| Weight | 97g (inc base) |
| Max Wire Gauge for Terminals | 2.5mm² |
| Colour | White |
| Material | PC/ABS |
| Electrical Specification | |
| Operating Voltage Range | 15 to 28.5Vdc |
| Max. Standby Current | 200μA @ 24Vdc (no communications) / 300μA @ 24Vdc (LED blink enabled, once every 5 seconds) |
| Maximum Continuous Current | 1A (switch closed) |
| Isolation Current | 15mA @ 24Vdc |
| LED Current - Red | 3.5mA @ 24Vdc |
| LED Current - Green | 7.0mA @ 24Vdc |
| LED Current - Yellow | 10.5mA @ 24Vdc |
| Remote Output Voltage | 22.5Vdc |
| Remote Output Current | 10.8mA @ 24Vdc |
| Additional loop resistance | typ 80mohm @ 24V (max 170mohm @ 15V) |
| Environmental Specifications | |
| Temperature Range | -30°C to +70°C† |
| Humidity | 10 to 93% relative humidity (non-condensing) |
| IP Rating | IP40 when installed in B501AP base, IP43 when installed in WB-1AP base |
Please note that while the NFXI-OPT operates effectively across a broad temperature range, it's always critical to install it in an environment that matches its IP rating to ensure optimal performance and longevity.
