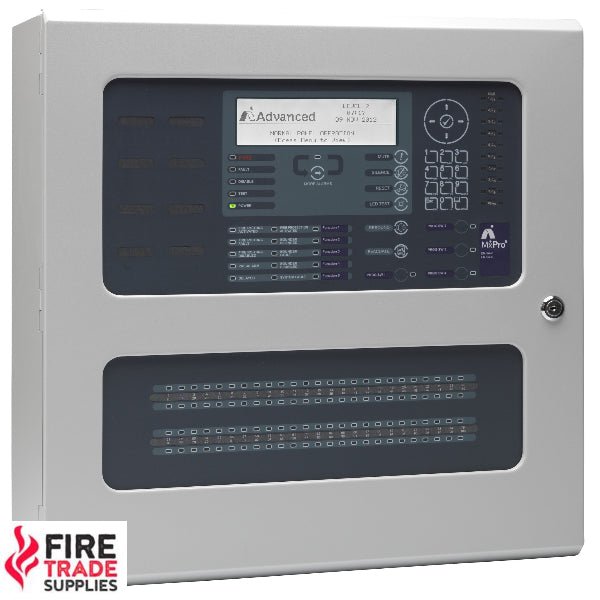

Mx-5404 Advanced MxPro5 4 loop Fire Alarm Panel

AdvancedSKU: Mx-5404

Price:
Sale price£2,203.67 GBP

Description

Manufactured by Advanced, this Advanced MX-Pro 5 4 Loop Fire Alarm Panel MX-5404. The MxPro 5 series is fully expandable from 1 to 4 loops and supplied with 4 on-board sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.

The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end-user operation.

Powerful cause-and-effect programming and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the on-board alphanumeric keypad, or PC-NeT configuration software.

PC Software: An extensive suite of user-friendly Windows based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels. The suite incorporates a number of different programmes to include a configuration, service, logo and virtual panel tool to allow the flexibility of the equipment to be fully explored.

Network: Simply adding a network card allows the panel to communicate with any other MxPro 5/MxPro 4 fire panel, remote terminal, or network peripheral, such as, ipGateway™ or BMS/graphical interface. The network operates as a true peer-to-peer system and can be configured in a fault-tolerant loop or radial format.

Advanced MX-Pro 5 4 Loop Fire Alarm Panel MX-5404 product specifications / product detail are as follows:

Manufacturer: Advanced
Part Number: MX-5404

Benefits / Details of Advanced MX-Pro 5 4 Loop Fire Alarm Panel MX-5404 include:

  • 20 programmable Zonal / 25 System LEDs.
  • Apollo, Argus Vega, Hochiki & Nittan Evolution protocol support.
  • Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional  hardware.
  • Dedicated USB & RS232 serial port for direct PC or modem connection.
  • Installer friendly Auto-learn, Loop Detection and On-board Scope facility for ease of commissioning and fault finding.
  • The graphical display can be configured to operate with virtually any language or character set, and allow the installer's logo to be applied using the Logo application software.
  • Integral P-Bus for system expansion via available option cards.
  • Ad-NeT peer-to-peer network with up to 2000 zones
  • Approved to BS EN54 part 2, 4 and 13.

Take a look at our range of Advanced Addressable products as well as many others. If you have any questions, please get in touch: sales@firetradesupplies.com.
