Description

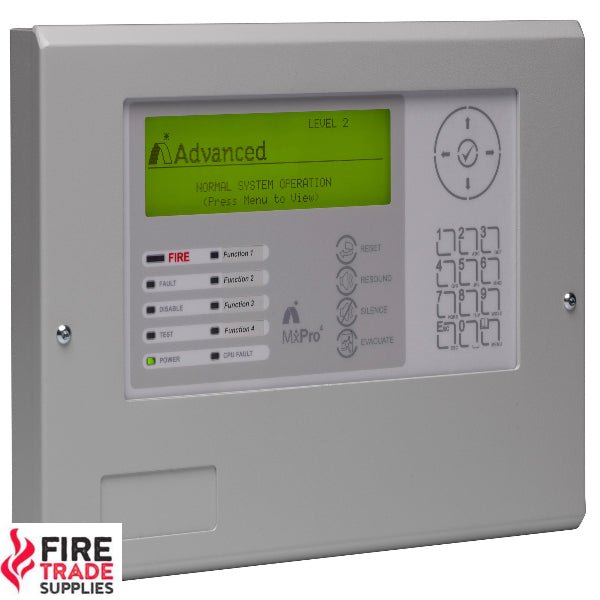

Manufactured by Advanced, this Advanced Remote Display Terminal Passive Repeater Panel MX-4010 utilises the same graphical LCD user interface that can be found on the MX-4000 series panels and is based upon the same flash based, microprocessor technology.
All MX-4000 series panels and remote terminals can communicate over the same 2-core network cable. The display information is fully programmable by individual zone or sector and can display any combination of fires, faults, pre-alarms or plant alarms. E.g. can display all information in its own sector, but only shows fire signals from other sectors of a building.
Incorporates "Buzzer Mute", view, enable/disable and test facilities with dedicated system navigation keys for simple user control.
By using "flash memory" and an advanced graphical display the MX-4010 can be easily configured to operate in virtually any language, with any character set and allows for the installer's logo and company details to be displayed on the LCD display during normal operation.
Fully On-Site programmable via on-board alphanumeric keypad or PC configuration tools.
Advanced Remote Display Terminal Passive Repeater Panel MX-4010 product specifications / product detail are as follows:
Manufacturer: Advanced
Part Number: MX-4010
Number of Products: 1 Passive Repeater Panel
Benefits / Details of Advanced Remote Display Terminal Passive Repeater Panel MX-4010 include:
- Dimensions(mm): 218H x 300W x 44D
- Colour: Beige
- Enclosure: Stell IP30
- Cable Entry 20mm Knock-outs - 4 Top & 4 Rear
- Networked for System Display
- Networked for System Control
- 24V DC Operating Voltage
- 3 Year warranty
- Graphical LCD Display
- Ad-NeT/Ad-NeT+ Compatible
- Small & Robust
