Description

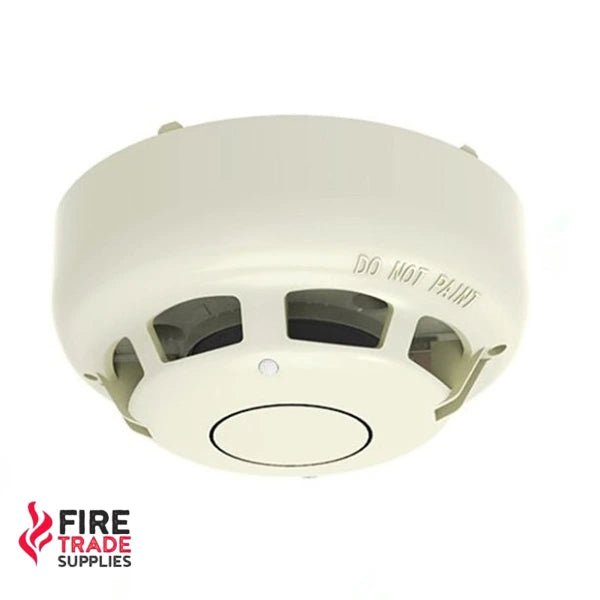

Manufactured by Hochiki, this ALN-EN Hochiki Addressable Optical Smoke Detector is a direct replacement of the ALG-EN and will share the same bases. Model ALN-EN is a Photoelectric Smoke Sensor, which is fully compatible with Hochiki's ESP Analogue Addressable Protocol. The ALN-EN incorporates Hochiki's newest High Performance Chamber Technology removing the need to use Ionisation Smoke Sensors in the majority of applications.
This also allows the sensor threshold level to be increased, thereby improving the signal to noise ratio and reducing susceptibility to false alarms. The ALN-EN smoke chamber is easily removed or replaced for cleaning and utilises a unique improved baffle design which allows smoke to enter the chamber whilst keeping out ambient light.
Product details:
Manufacturer: Hochiki
Part Number: ALN-EN
Alarm Current: 9.1 mA
Approval: LPCB & VdS
Base Fixing Centres: 48 ~ 74mm
Colour: Ivory or White
Compatible Bases: YBN-R/3, YBO-R/SCI, YBO-BS, YBO-BSB, YBN-R/3(SCI)
Diameter: 100mm
Height: 45mm
Humidity: 95% RH - Non Condensing (at 40°C)
Low Power Mode: 120 A
Operating Temperature: -10C to +50C
Operating Voltage: 17 - 41v DC
Quiescent Voltage: 400 A
Storage Temperature: -30C to +60C
Transmission Method: Digital Communications Using ESP
Weight: 95g
Key Features:
- Removable, High Performance chamber
- Twin LEDs allow 360 viewing – green when polling, turn red in fire
- Locking mechanism (sensor to base)
- Variable sensitivity
- Electronically addressed
- Pulsing/non-pulsing controlled from panel
- Approved by LPCB & VdS
- SIL Level 2 approved variants available
- Available in white
- Enhanced Performance Chamber
- New Outer Cover Design
- Software Advances
- Increase Noise Immunity
- Fully backwards compatible
