Description

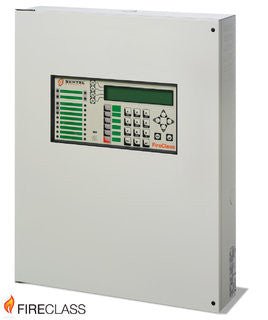

Manufactured by Fireclass, this Fireclass FC501-HK Triple Circuit Single Loop 2.5A PSU 557.200.720 is a FireClass 500 systems are simple to install and easy to use. Innovative software tools are provided to simplify all stages of a project from system design to final commissioning. The new FC501 panel is an out of the boxtriple circuit single loop panel featuring auto addressing and Intelli-Zone feature combining the semplicity of a conventional system with the power of the addressable technology. The Fireclass 500 system’s large clear panel displays and optional real-time graphics system provide the user with accurate information of fire and related events.
Fireclass FC501-HK Triple Circuit Single Loop 2.5A PSU 557.200.720 product specifications / product detail are as follows:
Manufacturer: Fireclass
Part Number: FC501-HK
Benefits / Details of Fireclass FC501-HK Triple Circuit Single Loop 2.5A PSU 557.200.720 include:
- 3 in 1 Loops
- Up to 400mA current dynamically shared across 3 loop circuits
- Two versions available (1.5 A or 2.5 A power supply)
- Up to 128 Addresses / 32 Zones
- Easy to programme
- Auto Addressing
- Auto mapping with Intelli-Zone feature
- Out of the Box
- On Line Help function
- USB interface dual role Host/Device
- Multi Users/Multi Installers (Up to 2 Installers, 8 Users)
- Walk test function
- 4000 Event Log
- Loop break location
- On board PSTN communicator
- Optional IP board
- GSM/GPRS as external module
- LCD display (160 Characters)
- Up to 4 repeaters
- Up to 4 Multifunction interfaces for printer / simplified fire brigade panels
- Event transmission via PSTN and IP
- Front panel controls enabling text and configuration changes
- Displays temperature, CO level and smoke level at any point
- Automatic drift compensation
