Description

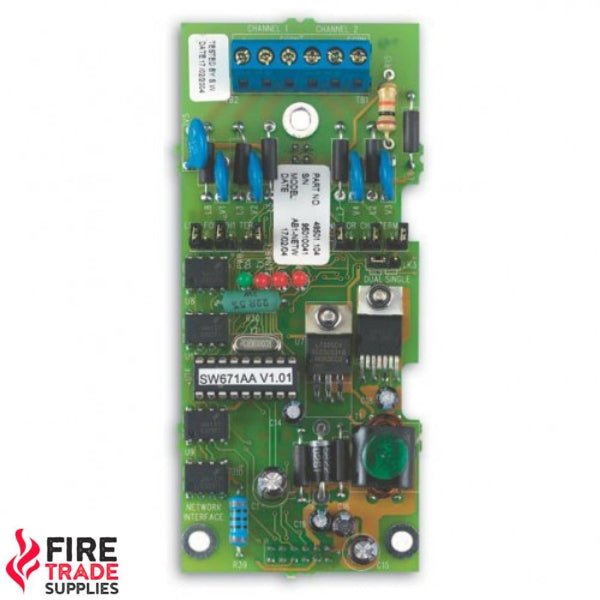

The ZP3AB-RS232 is a serial communications interface which can be attached directly onto the ZP3 main control board, inside the panel enclosure. The board is used to connect the fire alarm panel to external devices for example a desk top printer, or to associated equipment such as graphics displays, pocket paging and building management systems.
The ZP3AB-RS232 serial communications board is part of the range of optional facility boards which can be added cost effectively to any ZP3 control panel, in order to provide extra facilities that may not be a requirement of every system.
Housed within the ZP3 panel, options can simply be added during panel manufacture to meet particular specifications, or subsequently fitted on site should a particular requirement become necessary during the life of the system.
Features
- Optional communications interface for connection to external devices
- Housed inside standard panel enclosure
- Selectable software protocols to match external equipment
- Direct connection up to 50 metres
